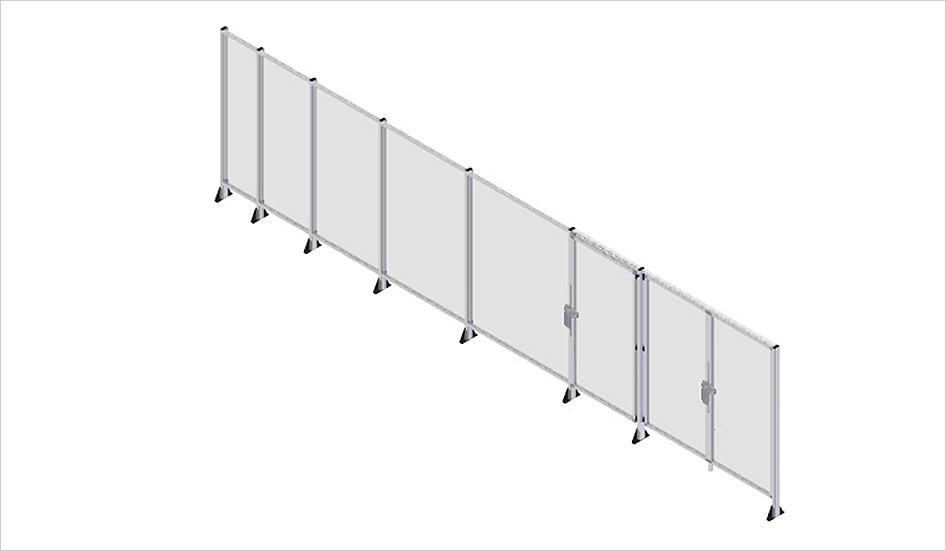

Direct Guard 40x40 E
Art. no. EX-01070The individual panels in Direct Guard 40x40 E made from Clamp Profile 8 Economy are screwed directly together. Stable Angle Brackets connect the Clamp Profiles and ensure the structure is exceptionally stable.
The guard can be configured as a closed wall or a wall with an integrated door. Double doors can also be implemented.
Soubory na stáhnutí
[Translate to Czech:] CAD data (ZIP)
518 KB
[Translate to Czech:] 3D (PDF)
256 KB
[Translate to Czech:] Drawing (PDF)
700 KB
[Translate to Czech:] Part list (Excel)
49 KB
[Translate to Czech:] Part list (PDF)
11 KB
